Voodoo Lab® X4

Voodoo Lab® X4


Available: Out of Stock

Estimated Delivery Time: 24 Hours or Less

Out of stock

SKU: Voodoo-Lab-Pedal-Power-X4

Voodoo Lab Pedal Power X4

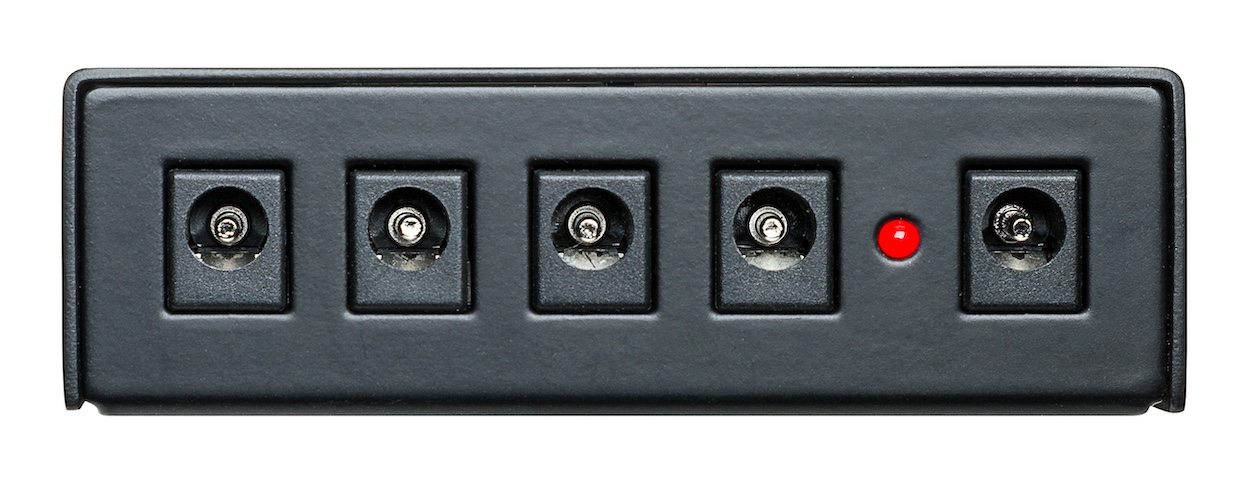

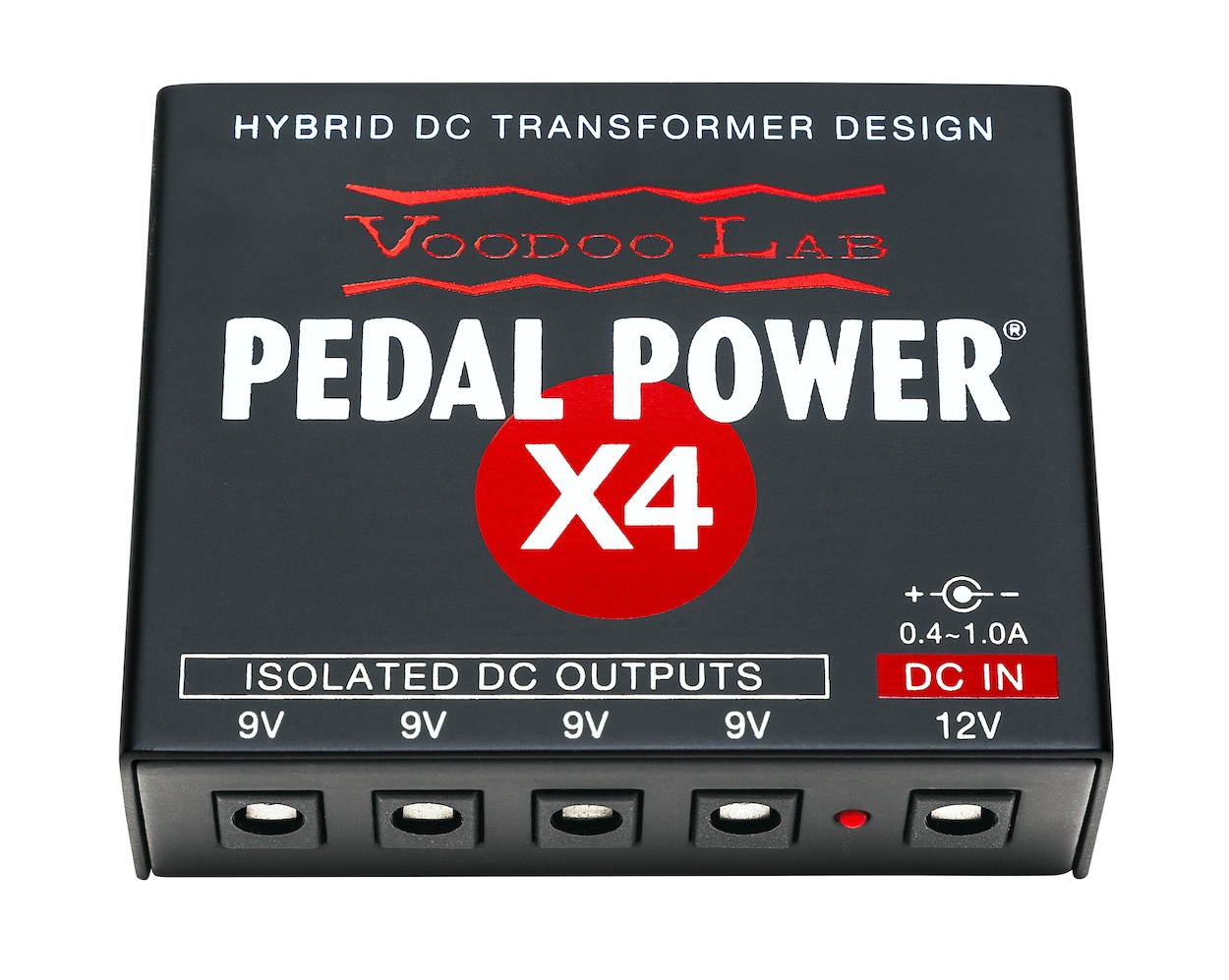

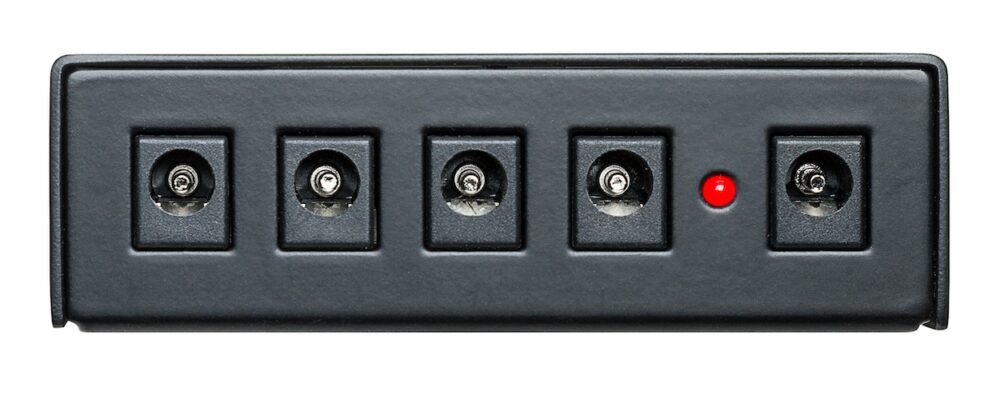

Pedal Power X4 is a professional isolated power supply for up to four battery operated or high current DSP effects. Housed in an ultra-compact aluminum chassis, the virtually weightless X4 mounts to even the smallest pedalboards, including Voodoo Lab Dingbat TINY and Pedaltrain® Nano. Pedal Power X4 delivers the pure and reliable power necessary for pedals to perform and sound their very best — all with zero added noise.

Pedal Power X4 can be powered from its included AC adapter or from any 12V 400mA Pedal Power output, adding 4 isolated outputs to the power supply. Pedal Power X4 conveniently operates at any mains voltage for international touring.


Universal input voltage power adapter,
120V 50/60Hz (North America model)
100V 60Hz (Japan model)
230V 50/60Hz (Europe/Australia model)
Voodoo Lab® X4 2
Model and input power are marked on the bottom of unit.

12 @ 5.5×2.1mm barrel connectors center negative Linear regulation
Short circuit protected

Two 9VDC + 12VDC (400mA)
Two 9VDC (400mA)
Two 9VDC (250mA)
Four selectable 9VDC (100mA) or 12VDC (60mA)

Two 9VDC (100mA) with SAG controls

5.5×2.1mm right angle barrel connectors (4)
5.5×2.1mm right angle to straight barrel connector (1)
5.5×2.5mm right angle red barrel (1)
5.5mm right angle mini plug (1)

10.7” wide x 3.4” deep x 1.8” tall (272 x 86 x 45 mm) 2.8 lbs (1.3 kg)

2 Toroidal Transformers

Variable speed silent cooling fan

Courtesy Outlet

5 Year Warranty

Weight 2.5 lbs
