Strymon PCH – Stereo DI & Headphone Amp

Ships in 2-4 Business Days

$279.99

No matter what instrument or genre of music you play, if you need to connect unbalanced outputs to a PA, recording interface or flat response speaker system, PCH is the ultimate choice for an absolutely transparent stereo direct interface – and it’s the only one that you can listen to locally via the headphone amp. PCH was designed from the ground up to be sonically transparent, virtually unclippable and straight up bulletproof – it’s the ultimate solution for your pedalboard, keyboard rig or synth setup.

Technology And Features

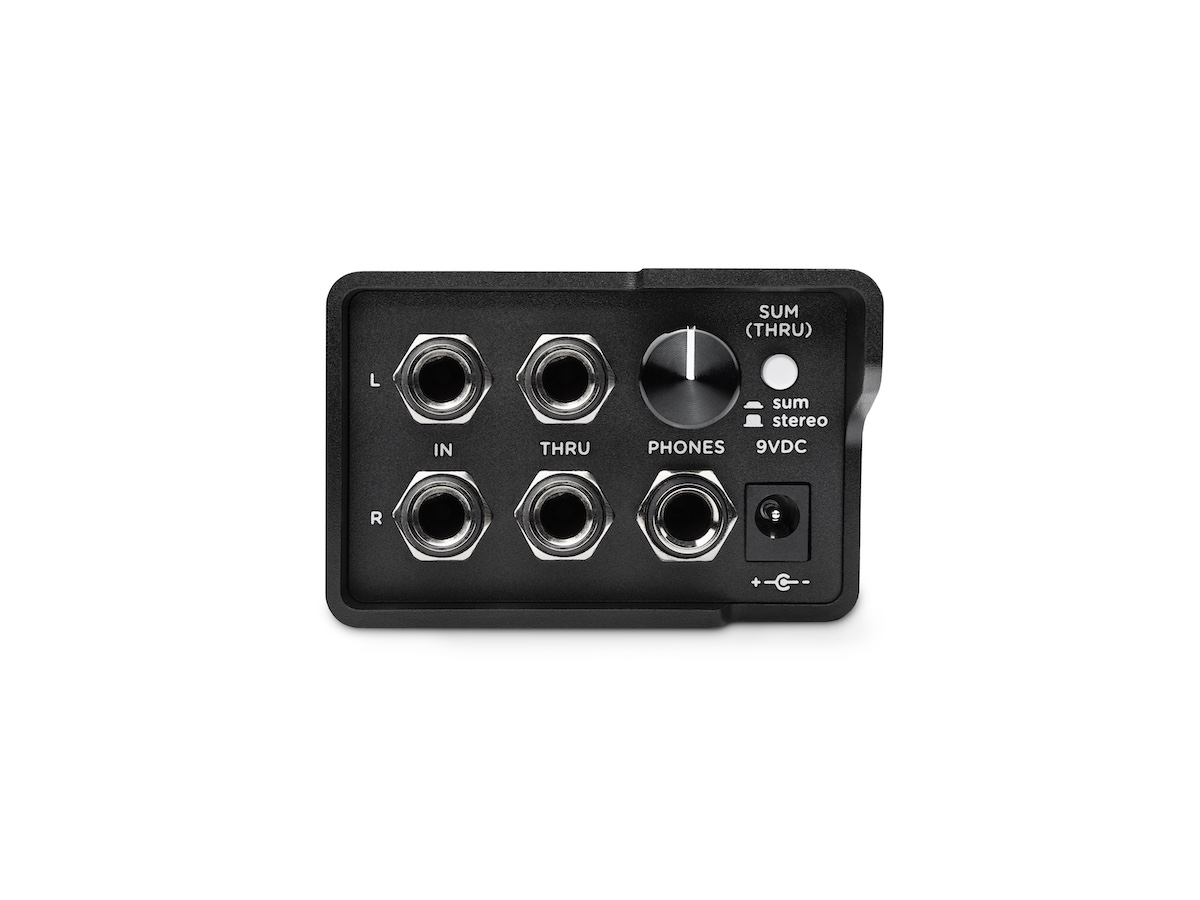

  1. Two channel design – use in stereo or dual mono, whichever fits your setup
  2. Runs on 9VDC – internally converted to 24V to be virtually unclippable
  3. Onboard headphone amplifier powerful enough to drive high impedance headphones

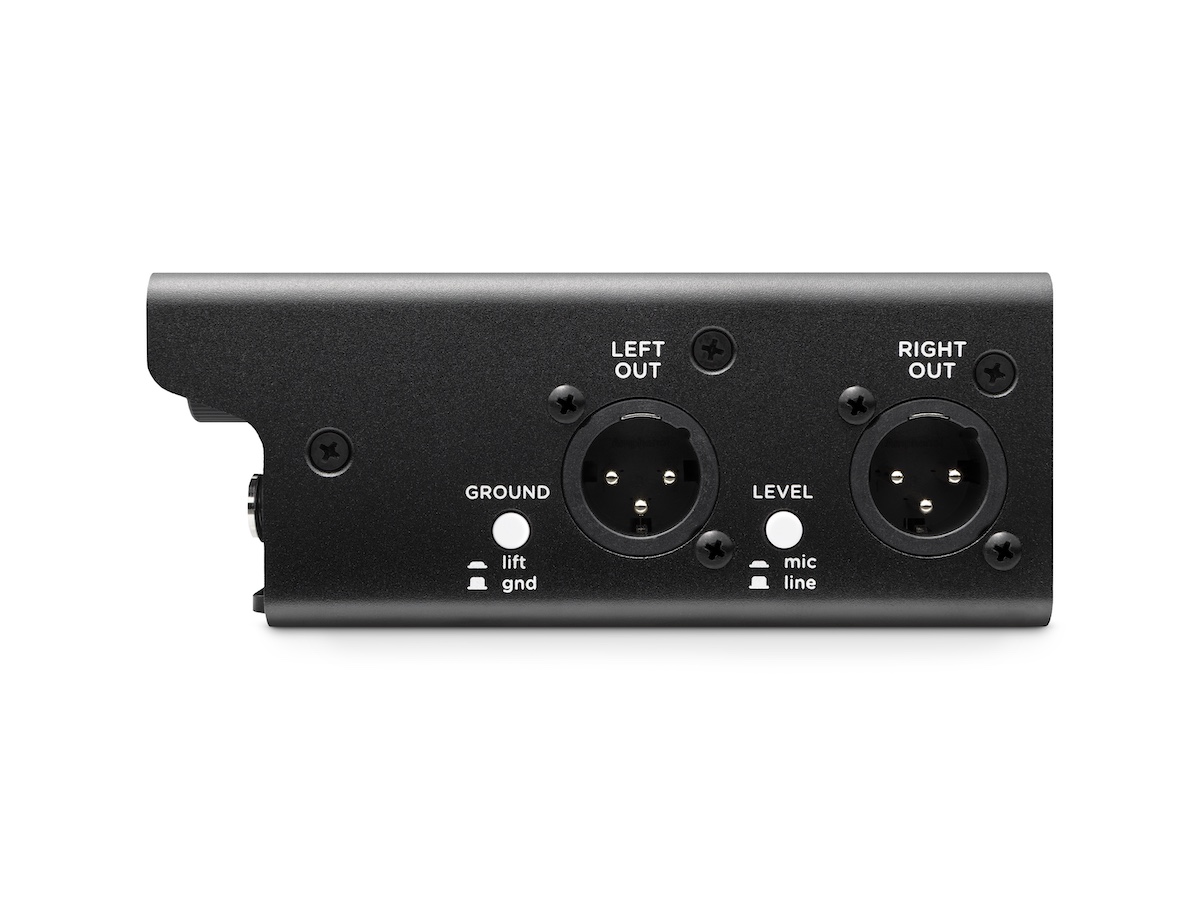

  4. Switchable Mic/Line level operation for the XLR outputs
  5. Defeatable ground lift for the XLR outputs
  6. Defeatable Sum for the Thru outputs
  7. Internal supply uses custom transformer for galvanic isolation
  8. Basically, PCH runs off of a modified internal mini Ojai power supply
  9. Flat frequency response
  10. Extremely low THD (Total Harmonic Distortion)

    Description

    Strymon PCH – Stereo Di with onboard Headphone Amp

    Now you can rest easy knowing that the sound of your pedalboard won;t change even a little when passing through PCH, and the headphone amp. This means you won’t have to ask anyone how you sound. You’ll know! PCH has a recording console-quality headphone amplifier on board, making it easy to monitor or practice listening to the sound of your entire rig or pedalboard in full stereo, no matter the pedal order or the components.

    Typical Input and Output Characteristics

    In

    Input Impedance: 1 MΩ

    Max Input Level: +20dBu

    Thru

    Output Impedance: 100 Ω

    SNR: +135dB (A-Weight)

    Noise Floor: -115dBV (10-22kHz no A-Weight)

    Gain Relative to Inputs: +0dB

    Frequency Response: +/- 0.25dB, 10Hz – 80kHz+

    HP

    Output Impedance: 2 Ω

    Frequency Response: +/- 0.25dB, 10Hz – 80kHz

    XLR, Line Setting

    Output Impedance: 275 Ω

    SNR: +130dB (A-Weight)

    Noise Floor: -110dBV (10-22kHz no A-Weight)

    Gain Relative to Inputs: +0dB

    Maximum Output Level: +20dBu

    Frequency Response: +/- 0.25dB, 10Hz – 80kHz+

    XLR, Mic Setting

    Output Impedance: 100 Ω

    Gain Relative to Inputs: -20dB

    Maximum Output Level: +0.0dBu

    SNR: +125dB

    Noise Floor: -125 dBV (10-22kHz no A-Weight)

    Frequency response: +/- 0.25dB, 10Hz – 80kHz+

    Power Supply:

    Input Voltage: 9VDC

    Current Requirement: 500mA Generated Supply: +/- 12V

    Additional information

    Weight 2 lbs
    Dimensions 12 × 6 × 6 in
